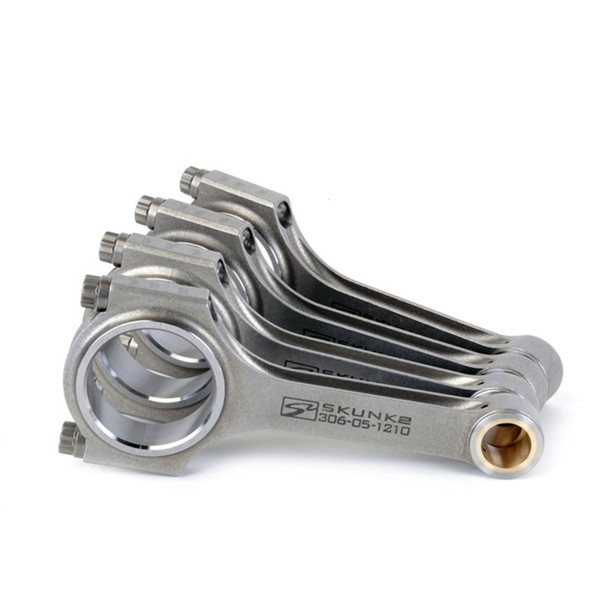

Skunk2 Alpha Lite Series Honda D16/ZC Connecting Rods

Skunk2 is proud to introduce its all-new Lite Alpha Series Connecting Rods for Hondas D16A and ZC engines. The Lite rod is made for lower horsepower application were maximum effort is not required making the rod with a narrower beam we reduced weight. Alpha Series Rods are forged from select 4340 chromoly steel and feature straight H-beam design, resulting in the ultimate strength-to-weight ratio. The D Lite Rods were designed for the Naturally Aspirated or Low Turbo build D Series. The D Lite rods can withstand up to 450+ hp all while maintaining the weight reduction. Skunk2 relies on extensive material testing and works closely with its foundry to produce high-quality rods at an affordable price. Comprehensive heat-treating, tempering, and shot-peening processes together ensure that each Alpha Series Rod remains consistent and strong. Finally, each rod is magna-fluxed to ensure integrity and that each process has been completed thoroughly and according to Skunk2’s rigid specifications. Engineers made use of FEA (Finite Element Analysis) to determine high-stress points and implemented features to reduce wear and increase strength. Skunk2’s straight design distributes stress across a larger area when compared to tapered rods, providing additional support where necessary. Alpha Series Rods are manufactured from two-piece forgings, resulting in optimal grain orientation along the rod cap for increased strength. Alpha Series Rods also feature dual oil passages at their pin ends, providing additional lubrication and cooling, which leads to an even stronger, more durable rod. Unlike other designs, Skunk2’s carefully positioned, offset oil passages help deliver lubrication around the entire wrist pin, during each phase of the engine cycle. Alpha Series Connecting Rod Set; 137.00mm Length; 458 Grams; Rated to 500HP; H-Beam; Lite Rod; Incl. 3/8 ARP2000 Bolts/Lube; 4340 Chromoly Steel; Set of 4; Set of 4; Length: 137.00mm; Weight: 448 grams; Not compatible with OEM style pistons.; Small-End Compatible w/MOST Aftermarket Pistons w/out Machining; Modification to the girdle and or block is necessary Fitment: 1988 Honda Civic RT 4WD 1988 Honda CRX Si 1989 Honda Civic RT 4WD 1989 Honda Civic Si 1989 Honda CRX Si 1990 Honda Civic EX 1990 Honda Civic RT 4WD 1990 Honda Civic Si 1990 Honda CRX Si 1991 Honda Civic EX 1991 Honda Civic RT 4WD 1991 Honda Civic Si 1991 Honda CRX Si 1992 Honda Civic EX 1992 Honda Civic Si 1993 Honda Civic EX 1993 Honda Civic Si 1993 Honda Civic del Sol Si 1994 Honda Civic EX 1994 Honda Civic Si 1994 Honda Civic del Sol Si 1995 Honda Civic EX 1995 Honda Civic Si 1995 Honda Civic del Sol Si 1996 Honda Civic EX 1996 Honda Civic del Sol Si 1997 Honda Civic EX 1997 Honda Civic del Sol Si 1998 Honda Civic EX 1999 Honda Civic EX 2000 Honda Civic EX
