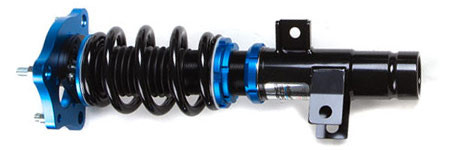

Revel Touring Sport Damper 17-18 Honda Civic Type-R FK8

The Revel Touring Sport Damper / Coilover (TSD) for the 2017-2018 Honda Civic Type-R FK8. This coilover suspension is built to make a more sport platform. With 32 adjustments in between you are able to dial the car from full soft up to full stiff. Which is a totally different character from min to max. Min can be softer than oem, max can well exceed it. With this kit, you wont be able to use the active damper system it will be disabled. You will be manually setting the damper at all four corners. It is quick to do, however it can take 3-10 minutes to complete while the car is parked.

"A great option for those with a Type-R who want improved performance, Decent pricing and Improved Stiffness and ride height for the FK8" -- HARDmotion Team

Every Day Performance

The 32 way adjustable Revel Touring Sports Damper is the ideal solution for the most comfortable ride in a coilover kit while achieving an extremely low ride height and utilizing the perfect balance of dampening forces and spring rates to deliver smooth performance when it is needed.

Pillow Ball Upper Mounts

Pillowball upper mounts give the driver greater driving feedback when compared to OEM rubber upper mounts. A spherical bearing is used in place of a rubber bushing and an adjustable camber plate is utilized on certain applications which aid in achieving improved tire traction and alignment.

*Pillow ball upper mounts included on certain applications.

Teflon Thrust Washers

Teflon thrust washers reduce friction during steering movement and eliminates spring binding and movement. Also eliminating unwanted noise and maintaining proper adjustment of the height adjustment.

*Teflon thrust washers included only on MacPherson type strut.

Spring Rates

8k Front 5k rear

Spring rates are perfectly balanced between comfort and sport like feel for optimum ride quality. Full length thread body with independant preload allows for max lowering.

Monotube Damper

Larger piston valves and oil capacity allows for a faster reacting dampening force and efficiency through all temperature ranges. High strength and rigidity brackets ensure the driver has the utmost confidence for all driving types.

Features:

Front Setup:
8K
Pillowball Upper Mount
Rear Setup:
5K
No Aluminum Upper Mount
Separate Spring And Damper

Spring Rates: 8k front / 5k rear

Part #: 1TR3CDHN006

Fitment: 2017 2018 2019 Civic Type-R FK* (only)
