Eventuri BMW M2 Competition - Black Carbon Intake

BMW Black Carbon Fiber Intake - Eventuri EVE-M2C-CF-INT

The F87 M2 Competition intake system is designed to allow the turbos to work more efficiently. By replacing the stock airbox system with Eventuri's patented Venturi filter housings and smoothly curved tubes, the airflow to the turbos is more laminar thus they can spool with less drag. Since the M2 Competition does not have air openings behind the grills, we also added sealed ducts to ensure that the intake temperatures stay as low as possible. The combination of our Venturi housings, organically shaped tubes, and sealed ducts result in an optimized intake which sets a benchmark for this platform. This perfect example of Eventuris' “Complete System” principal. It demonstrates the perfect balance between allowing for unrestricted airflow with an open filter housing and cold air saturation with proprietary scoop and duct combination. Every detail has been meticulously developed from the prepreg carbon pieces to the precision bracket work. This intake sets a new benchmark in design and craftsmanship for the F87 platform.

The M2 CS Eventuri system uses a Patent Pending Carbon Fiber Housing which provides an aerodynamically efficient airflow path from the filter to the MAF tube. Not just another cone filter with a heat shield but a unique design which invokes the Venturi effect.

The filter housing comprises of a high flow filter, aluminum cowl, laser cut bracket and the carbon pod itself. The carbon pod shrouds the reverse mounted filter and smoothly shapes the airflow down to the intake tube. This smooth reduction in cross-sectional area invokes the Venturi effect where the airflow accelerates whilst maintaining laminar conditions. It can be thought of as a large velocity stack.

Performance Gain: 12-20hp, 12-16ft-lb

The Eventuri M2 Competition intake system consists of a number of components engineered to perform a specific purpose and fabricated to the highest of standards. Here are the details for each component and the design ethos behind them:

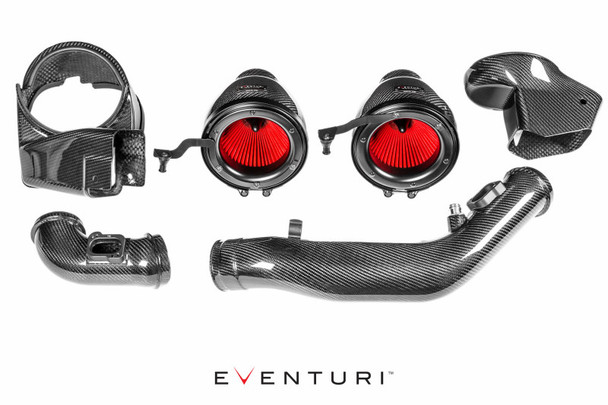

Each intake system consists of:

• 2 x Patented Carbon Fiber Venturi housings
• 2 x Bespoke High Flow Generation 2 Filters
• 2 x Aluminium Cowls for smooth airflow entry
• Left Side Carbon Tube with integrated MAF sensor mount
• Right Side Carbon Tube with integrated MAF sensor mount
• 2 Carbon Fiber Intake Ducts
• Laser Cut Stainless Steel Brackets
• High quality Silicon couplers with BMW specification hose clamps
